Plasma cutting effect display for P80 consumables
Upload Time:
2025-03-21
The 1st cutting situation:
Power Source: Tangshan Panasonic LGK-100
Current: 100A
Air Pressure: 4.5 ~ 5.5 Mpa
Working Piece: Mild steel
Thickness: 20mm
Hole size of Nozzle: improved nozzle 1.7mm
Cutting speed: 120cm/Min
Cutting length: 186 M

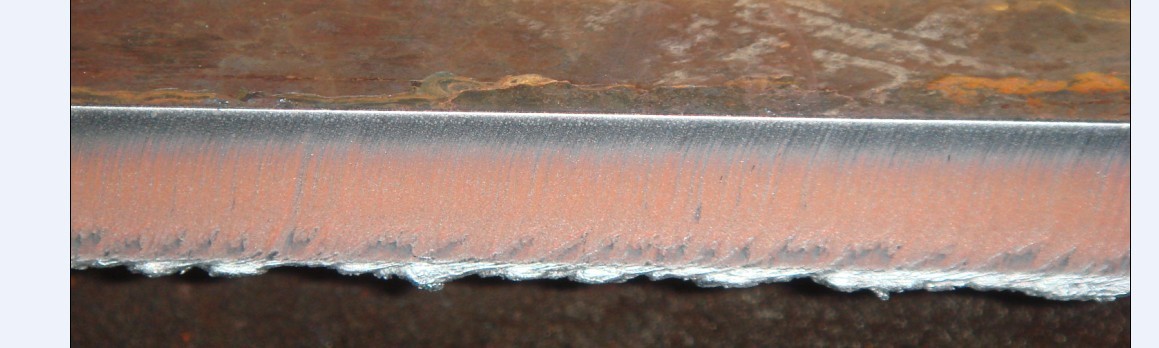

Photo is as following.
The 2nd cutting situation:
Power Source: Tangshan Panasonic LGK-100
Current: 100A
Air Pressure: 4.5 ~ 5.5 Mpa
Working Piece: Mild steel
Thickness: 20mm
Hole size of Nozzle: improved nozzle 1.5mm
Cutting speed: 100cm/Min
Cutting length: 140-160 M
The spatter is a little more than first one, but it can be easily removed by spatter hammer.
Cutting effect is nearly fine cutting effect.

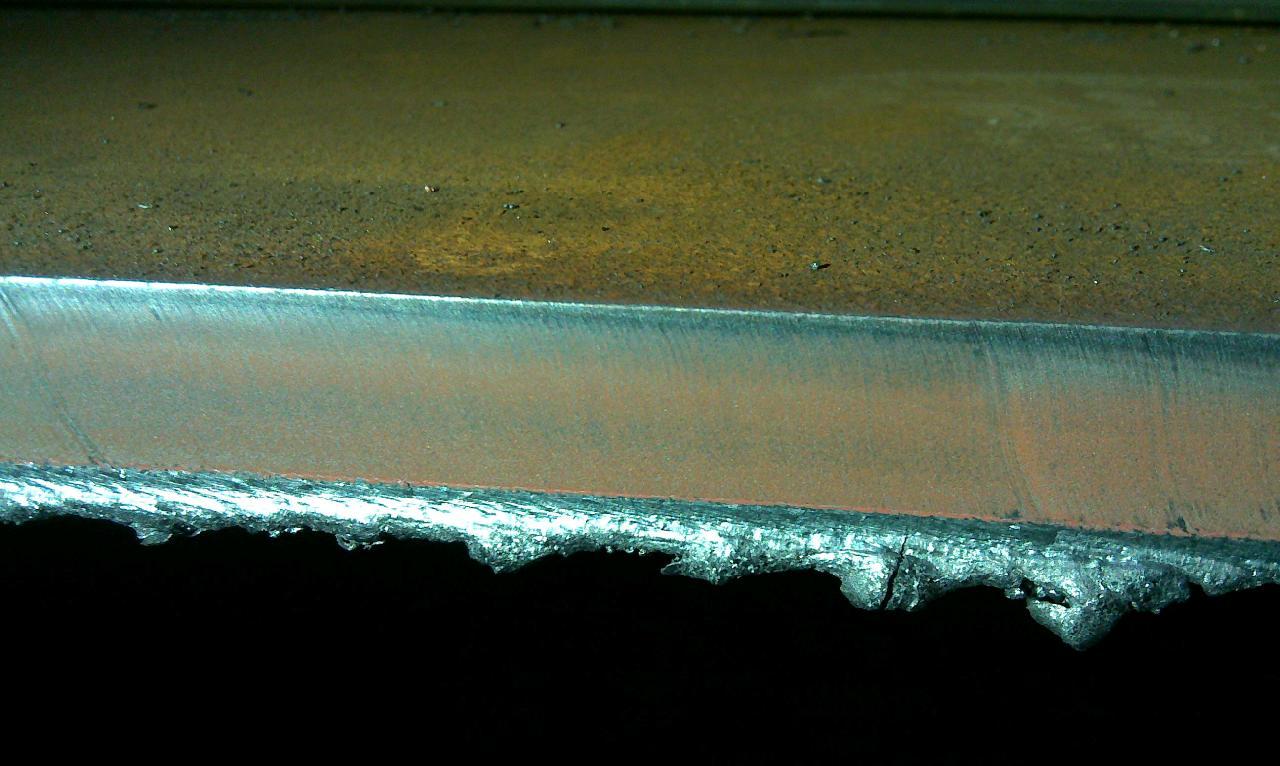

Following is real shot of the working piece.
Cutting effect of the improved nozzle. Observing with the naked eye and touching with the hand, the texture is delicate, almost achieving a quality cutting effect, rather than just simply cut off.
